5040
The largest stage in the fleet — and the one the headliners ask for. Four hydraulic systems take the 5040 from highway trailer to headline stage, with a setup time conventional staging can't touch.
APEX · Classic & GEN3
The largest stage in the fleet — and the one the headliners ask for. Four hydraulic systems take the 5040 from highway trailer to headline stage, with a setup time conventional staging can't touch.
Overview
The APEX 5040 is the flagship of our fleet, fitted with the technology that makes it one of the fastest, strongest and safest mobile stages in the industry. Four distinct hydraulic systems handle the entire deployment — outriggers for stability, towers for the roof, roof tilt for the primary and secondary roof, and a floor system that folds the deck from vertical to horizontal.

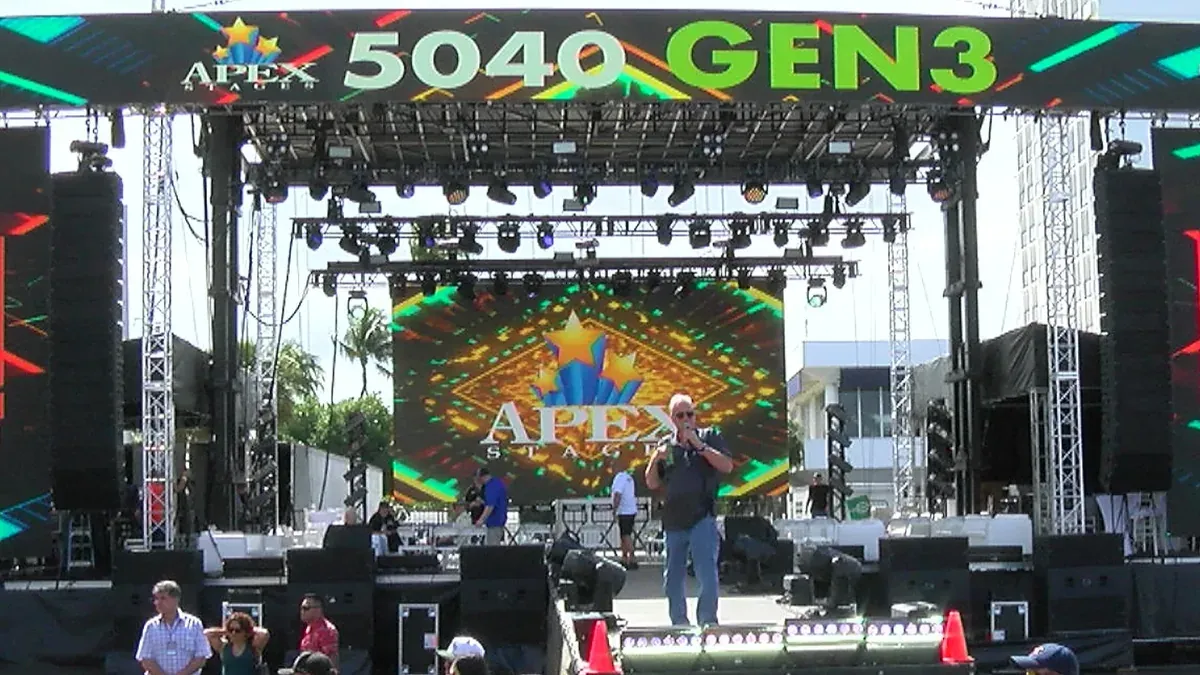

Pair it with our 48-box JBL VTX V25-II line array, the Absen X5 LED wall and our intelligent lighting inventory, and you have a serious concert rig for an audience of 20,000 plus — a world-class touring setup we can have ready at a moment's notice.
| Deployed stage (L × W) | 50′ × 38′ |
|---|---|
| Deployed roof (L × W) | 53′ × 38′ |
| Stage floor to center truss | 35′4″ max · 25′4″ intermediate |
| Maximum deck height | 80″ |
| Travel height | 13′3″ |
| Overall width (travel) | 102″ |
| Total trailer weight | 55,165 lb |
| Kingpin to front trailer axle | 29′11″ |
| Front to rear trailer axle | 10′1″ |
| Hydraulic pump engine | 20 HP |
| Hydraulic pump capacity | 3.0 GPM |
| Pump max pressure | 4,000 psi continuous · 4,400 psi intermittent |
| Hydraulic reservoir | 40 gal · Hydra 1000 R&O A/AW, ISO #32 |
| Outrigger extension / spread | 27″ max · 20′ spread |
| Floor leveling speed jacks | 40 |
Figures above are from the manufacturer spec sheet. Anything not listed: spec sheet on request — or call 786-504-2369 and we'll talk through your site.
Built For
Team the 5040 with our 48-box JBL VTX V25-II line array, the Absen X5 LED wall and our intelligent lighting inventory — plus generators, MOJO barricade, cable ramps, Bil Jax scaffolding and a full crew of audio, lighting, video, staging and rigging engineers.
